When a driveway needs a culvert
A culvert is a pipe or other drainage structure that carries water under a driveway or road. It may be needed where new access crosses a ditch or an established flow path.
Standing water on the inlet side, water overtopping the driveway, erosion around the pipe, or a crushed opening can point to a problem. Blockage, incorrect elevation, damage, and insufficient capacity need different solutions.
Repair, clean out, or replace?
A blocked but sound pipe may need debris removal and correction of the conditions causing the blockage. A collapsed, badly corroded, displaced, or unsuitable pipe may require replacement.

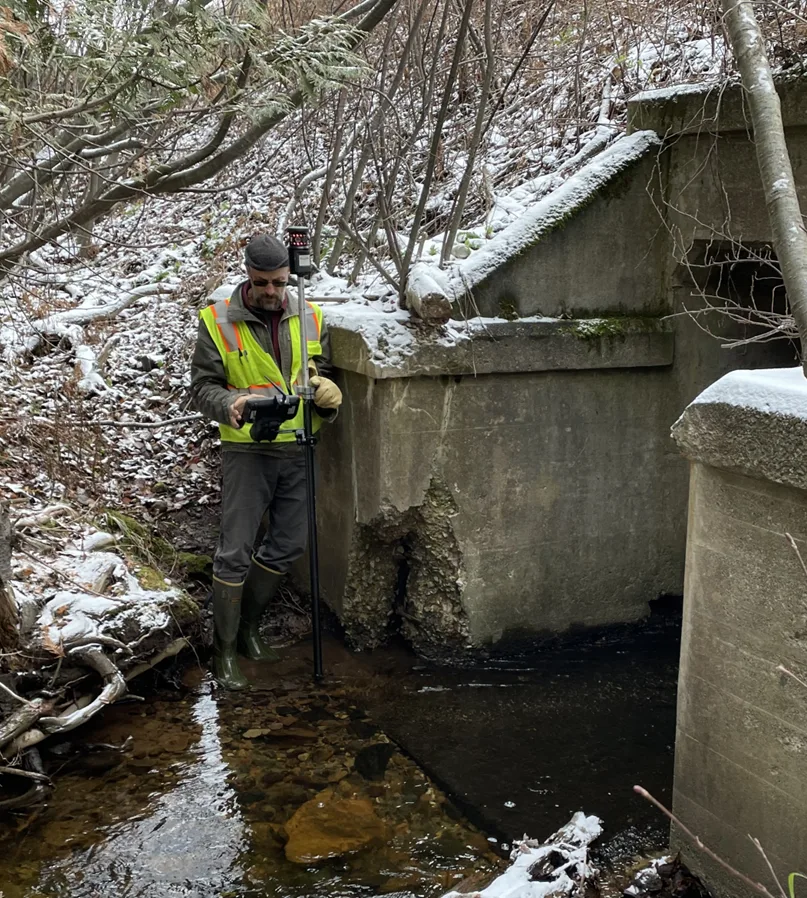

The inspection should consider the entire crossing: inlet, outlet, bedding, joints, soil cover, and the driveway above it. Replacing a pipe with the same size is not automatically the right choice if the original crossing was undersized.
What installation involves
The layout begins with drainage direction, contributing runoff, expected vehicle loads, and any road-authority requirements. Pipe dimensions and cover are selected for those conditions rather than guessed from driveway width alone.
- Confirm approvals, utilities, access, and the planned outlet.
- Prepare the trench and stable bedding at the required elevation.
- Set the pipe and place suitable backfill in compacted layers.
- Restore the driveway and protect the inlet and outlet against erosion.
Check the road connection first
A driveway culvert at a public-road entrance can fall within a road authority’s right-of-way. County-maintained roads, state or US highways, and municipal roads do not all use the same approval process. Confirm jurisdiction and project requirements before disturbing the crossing.
